Calypso Ballistics
Ballistics Wind and atmosphere, measured where you shoot
  1. Products
  2. Ultrasonic Portable Mini Wind Meter
Public Pricelist EUR

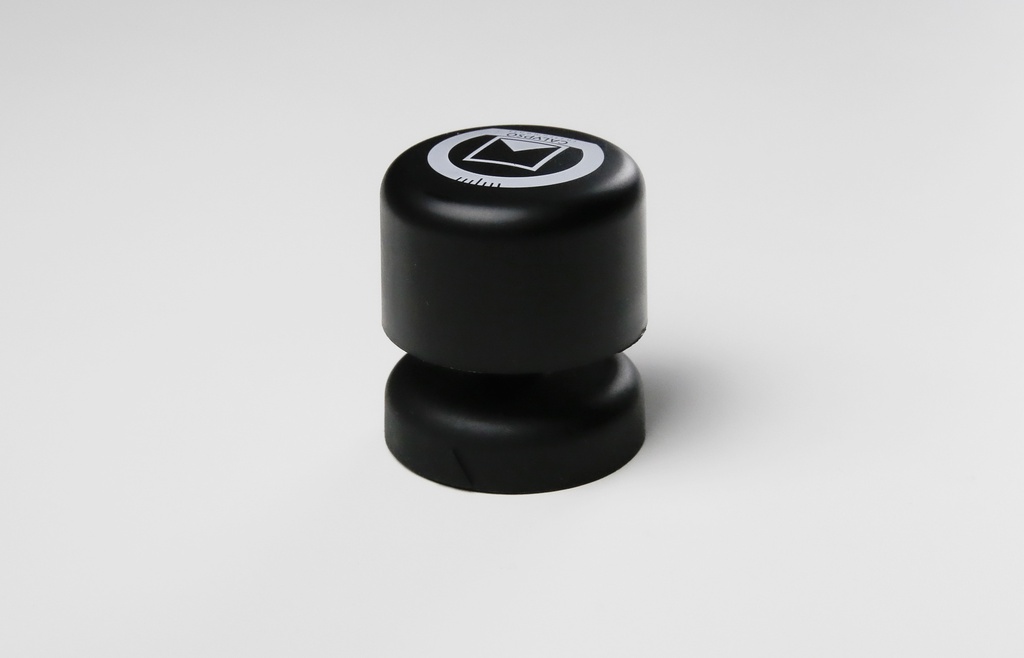

Ultrasonic Portable Mini Wind Meter

https://www.ballisticswindmeters.com/web/image/product.template/221/image_1920?unique=b6cf50c

Pocket-sized ultrasonic wind meter. 43 mm, 78 g, Bluetooth, no moving parts. Available in 25 m/s and 45 m/s.

314.00 € 314.0 EUR 314.00 €

366.00 €

Not Available For Sale

  • ​

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Ultrasonic Portable Mini Wind Meter

  • ​

314.00 € 314.0 EUR 314.00 €

366.00 €

Not Available For Sale

This combination does not exist.

Pocket-sized ultrasonic wind meter. 43 mm, 78 g, Bluetooth, no moving parts. Available in 25 m/s and 45 m/s.



            Bluetooth, battery powered, pocket-sized ultrasonic anemometer.

            Wind speed and direction, live or logged. Four ultrasonic transducers and no moving parts keep it robust and dependable. At 43 mm and 78 g it rides in a pocket and works in hand or mounted.

            Two models.

            CMI1022 reads up to 25 m/s (56 mph). CMI1037 reads up to 45 m/s (100 mph). Same size, same app, same accessories.

            Easy to mount, easy to use.

            Charge it, thread it onto any standard tripod with the 1/4" mount, download the app and go. Add the mast mount (CMI1028) or phone mount (CMI1023) for more setups. It works with a wide range of third-party apps and displays across marine, weather and ballistics.

            Wireless, start to finish.

            Qi wireless charging in about an hour. Up to 300 hours of active use per charge. Bluetooth Low Energy connects it straight to your phone, tablet, Garmin watch or display. IPX8 rated.

            Nominated for the DAME Design Awards 2021. The DAME Awards recognize the best designed products at the METSTRADE Show. ​

            Certifications



            Free AnemoTracker App.

            Works with the Ultrasonic Portable Mini and Ultrasonic Portable Solar, with four modes: Marine, Golf, Meteo and Ballistics.

            • Apparent wind speed and direction
            • Real wind speed and direction on a vehicle or boat
            • Data logging with export to Excel or Google Earth
            • Adjustable wind direction damping
            • Velocity Made Good calculations
            • Graphs with means and deviations
            • Units: m/s, km/h, knots, mph
            • Threshold alarm, direction offset, map mode and more
            • Firmware updates over Bluetooth with AnemoTracker Configurator.

             Download it for IOS

             Download it for Android

             Download it for Garmin Connect IQ

            Other compatible apps.

            Marine: Calypso Instruments Sailing, Garmin, Sentinel Marine Solutions, iRegatta, eStela, Sail Racer, EDO Sailing Instruments, SailGrib, qtVlm Navigation and Routing, Tactiqs.

            Meteo: Weather4D, Weather File.

            Ballistics: Strelok Pro.

            Compatible displays: Sail Racer, N9350 (Novasail), Vakaros Atlas 2.



                 Read More



            Package contents.

            • Ultrasonic Portable Mini wind meter
            • Qi wireless charger
            • Travel pouch
            • Serial number on the packaging
            • User guide at calypsoinstruments.com, linked by QR code on the packaging


              The SKU/CMI product number for the Mini 25m/s Portable Wind Meter (no extra features) is CMI1022.

              The SKU/CMI product number for the Mini 45m/s Portable Wind Meter (no extra features) is CMI1037.

            CategorySpecValue
            ModelsCMI102225 m/s
            CMI103745 m/s
            MaterialHousingInjected engineering plastic (black)
            DimensionsDiameter43 mm (1.69 in.)
            Height47 mm (1.85 in.)
            Weight78 g (2.75 oz.)
            Wind SpeedRange, CMI10220.5 to 25 m/s (1.12 to 56 mph)
            Range, CMI10370.5 to 45 m/s (1.12 to 100 mph)
            Accuracy0.3 m/s or 3 % at 0 to 16 m/s (0 to 35.8 mph)
            Accuracy, CMI10225 % at 16 to 25 m/s (35.8 to 56 mph)
            Accuracy, CMI10375 % at 16 to 45 m/s (35.8 to 100 mph)
            Resolution0.01 m/s (0.0224 mph)
            Wind DirectionRange0 to 359°
            Accuracy3° at 1 to 5 m/s (2.24 to 11.2 mph)
            1° at 5 to 16 m/s (11.2 to 35.8 mph)
            Accuracy, CMI10226° at 16 to 25 m/s (35.8 to 56 mph)
            Accuracy, CMI10376° at 16 to 45 m/s (35.8 to 100 mph)
            Resolution1°
            Wind DataOutputApparent and real wind speed and direction via App
            SensorsTypeUltrasonic transducers (4x), no moving parts
            Sample RateRate1 Hz
            Configurable UnitsWindm/s, km/h, knots, mph
            Data OutputBluetoothBLE 5.1 or beyond
            RangeUp to 30 m (98 ft) in open space
            FirmwareUpdatesVia Bluetooth with AnemoTracker Configurator App
            PowerTypeBattery powered
            ChargingQi wireless (charge upside down), approx. 1 hour
            Battery life (active use)Up to 300 hours
            Battery life (standby)2,000 hours
            MountThread1/4" female thread (tripod standard)
            Mast mountCMI1028
            Phone mountCMI1023
            EnvironmentalProtectionIPX8
            Operating temperature-15 to 60 °C (5 to 140 °F), no frost
            Operating humidity0 to 100 % RH
            App CompatibilityAppCalypso AnemoTracker App (iOS, Android, Garmin Connect IQ)




            Data Sheet 25 m/s
            Data Sheet 45 m/s
            English Instruction Manual




            Mast Mount for Mini


             Phone Mount
















            Ballistics
            Eagle Ballistics
            Hornady
            Strelok

            Sailing
            VAKAROS
            NOVASAIL

            Specifications

            ​ 25m/s or 45m/s
